Shear Pumps

Home Products Shear Pumps

OVERVIEW

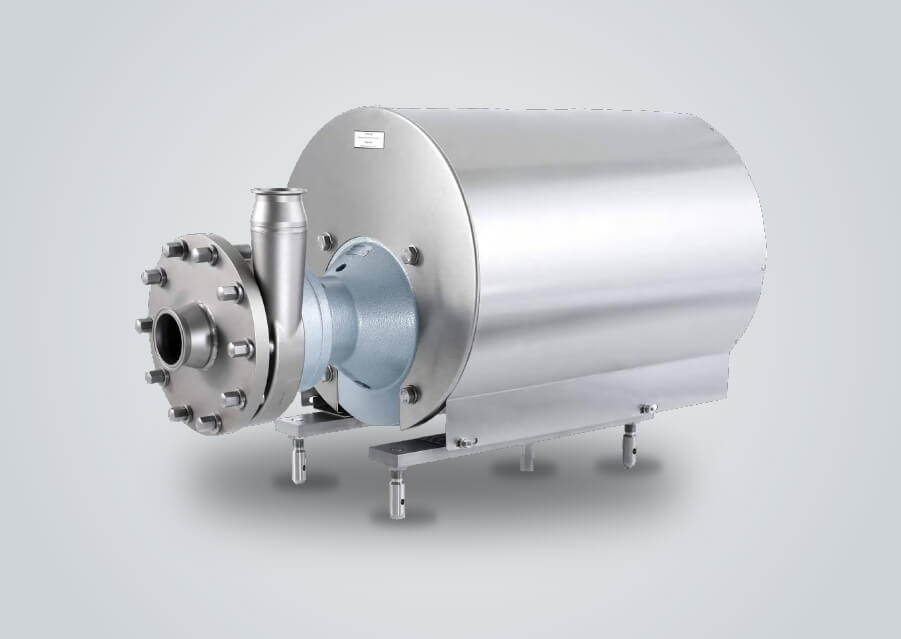

Fristamโ€™s shear pump is specifically designed for producing dispersions and emulsions with maximum efficiency. It achieves incomparably homogenous products while reducing raw material input and shortening processing times considerably. The FSPโ€™s three-dimensional shearing process continuously produces perfect blends of consistent quality. All models are extremely hygienic and efficient, very robust, and exceptionally economical.
DOWNLOAD BROCHURE
test_img - Copy
test_img

SPECIFIC CONSTRUCTION

Fristam shear pumps were developed based on our proven centrifugal pumps of the FP series. In place of their impeller, a rotor-and-stator system draws inhomogeneous products through shearing clearances of just 0.3 mm at tip speeds of up to 38 m/s. As a result of extremely high flow rates in the rotor-and-stator system, and the high shear rates of up to 125,000 1/s, multiphase products are blended with supreme efficiency.

Technical Specifications

  • 5 different sizes
  • Impeller ร˜ up to 250 mm
  • Viscosities up to 100,000 mPa.s
  • Shear rates up to 125,000 1/s
  • Viscosities up to 100,000 mPa.s

Industry Applications

Pump Configurator

Find the right pump solution for your job

Fristam Pumps provides a comprehensive tool for all pumping applications that you can use to select pumps and valves quickly and easily in a user-friendly configuration environment and find the optimal solution for your projects. No matter where you are in the pump recognition stage, Fristam can help you find the most appropriate one with our automated tool.
Click to Configure

FAQs

1. What are shear pumps?

Shear pumps are mechanical devices also known as high shear mixers or blenders, it's a three-dimensional shearing process to continuously produce perfect blends of consistent quality with absolutely homogenous end products. It serves in diverse industrial applications including pharmaceutical, cosmetics and home care, beverages and food.

2. Can shear pumps handle high-viscosity liquids?

Yes, Shear pumps can handle high-viscosity liquids, however, the pumps have a few limitations related to its specific defined design and application and those are high-torque motors, external priming needs to be paired with a feeder at the initial stage to turn down the viscosity of fluids before entering into the pumps, pumps inlet and outlet design, and speed operation.

3. Are shear pumps suitable for sanitary applications?

Yes, Shear Pumps are suitable for sanitary applications due to its specific design and industrial compliance (3-A sanitary standard, EHEDG certification), 316L stainless steel material that is corrosion resistant, Clean-in-place (CIP) and SIP (Sterilize-in-place) compatibility, Low shearing and pulsation.

4. How do Fristam Shear Pumps improve production efficiency?

An improvement of production efficiency by Fristam shear pumps through various parameters including application possibilities, homogenization method, process-oriented customized solution, minimal downtime and maintenance costs, versatility and energy efficiency.
