PM / PMV Powder Mixer
Meticulously designed to blend dry and wet ingredients seamlessly
Fristam Powder Mixers offer a versatile solution for effectively mixing powders and liquids across various applications. These mixers are expertly designed to dissolve, emulsify, and homogenise dry and wet ingredients into fluids, addressing many mixing challenges. With their ability to achieve perfect, homogeneous, and smooth textures, these mixers ensure hygienic outcomes while operating with exceptional efficiency and cost-effectiveness. Furthermore, Fristam Powder Mixers are fully equipped for CIP (Clean-in-Place) and SIP (Sterilise-in-Place) processes, adding to their convenience and versatility in maintaining stringent hygiene standards.
Technical Specifications
-
5 different sizes of the PM series
-
3 different sizes of the PMV series
-
Powder intake up to 10 t/h
Specific Construction

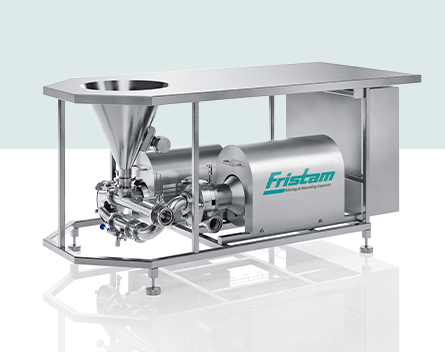

Supported by a base frame, a self-priming centrifugal Fristam FZ pump (series PM) or a Fristam FL3 positive displacement pump (series PMV) is connected to a Fristam shear pump. From a funnel, the powder is drawn directly into the fluid product stream and then homogenised. An ergonomically designed table facilitates manual powder feeding. If equipped with specific control systems, the powder mixers can be integrated into fully automated systems. We also supply adapters for fully or semi-automatic feeding via big bags, crew converters, and other conveyor systems.

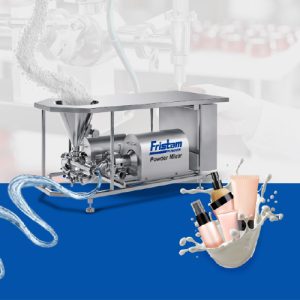

Application
Salient Features
Better Technology
Ergonomic and safe
Better Technology
Why Fristam Is Better

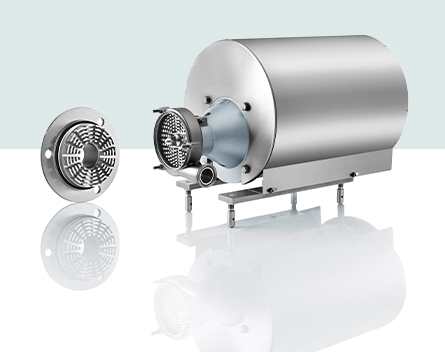

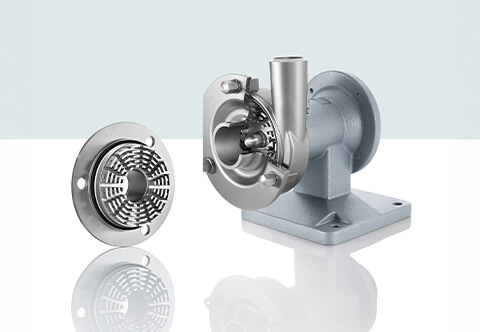

The FS Shear Blender uses an intermeshed rotor/stator system to disperse particles into liquid. The rotating teeth pass within 0.5 mm of the stationary teeth at high speeds, causing a tremendous amount of turbulence. As centrifugal force pushes the product towards the outlet, the intensity of this turbulence ensures that all product must be thoroughly blended to exit the FS.

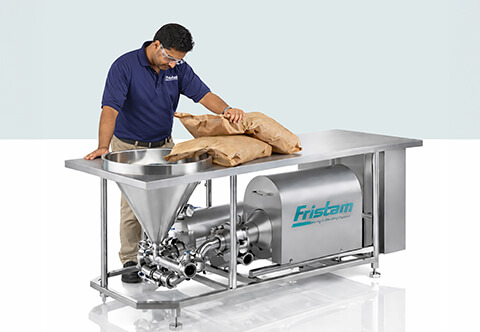

Ergonomic and safe
Floor-Level Operation
No dangerous ladder climbing. No falling or dropping equipment from a mezzanine. No bending to pour. Smaller models are portable, with locking wheels. Easily move the Powder Mixer to different processes each day.
