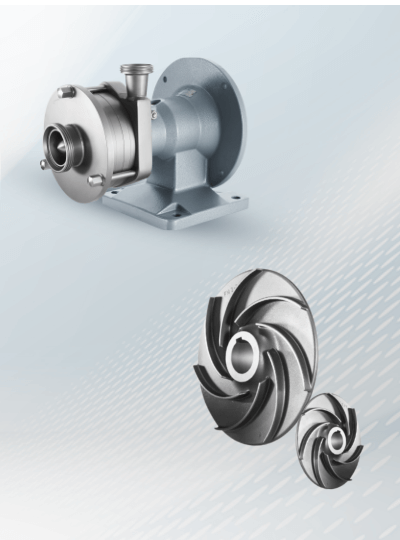

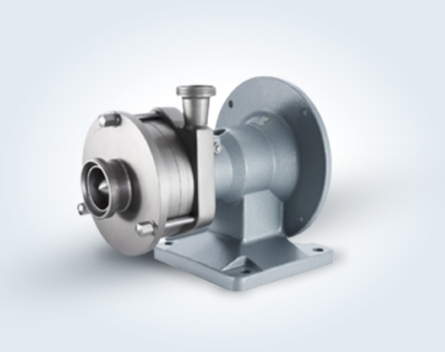

FM Multistage Centrifugal Pump

Home Products Centrifugal Pump FM Multistage Centrifugal Pump

The ultimate solution for high-pressure transfers

When transferring highly sensitive products under high pressure, consider using the FM Multistage Centrifugal Pump by Fristam. This pump is hygienic, smooth-running, robust, easy to maintain, durable, and economical. It’s been specifically designed to generate high delivery heads and is perfectly equipped to operate under extreme pressure conditions.

Technical Specifications

  • 3 different sizes
  • 2 to 5 stages

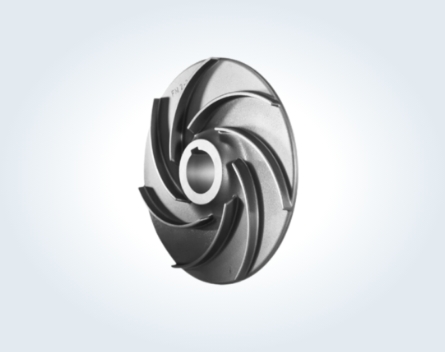

  • Impeller ร˜ up to 250 mm
  • Discharge pressures up to 28 bar
  • Flow rates up to 80 m3/h
  • Viscosities up to 500 mPa.s

Specific Construction

The FM is a multistage pump specifically developed to generate high delivery heads, boosted by several successive pump stages. Adhering to minimal production tolerances throughout our highly precise production process makes the FM series an exceptional product of superb industrial manufacturing.

Application

Salient Features

Industry Applications

Pump Configurator

Find the right pump solution for your job

Fristam Pumps provides a comprehensive tool for all pumping applications that you can use to select pumps and valves quickly and easily in a user-friendly configuration environment and find the optimal solution for your projects. No matter where you are in the pump recognition stage, Fristam can help you find the most appropriate one with our automated tool.
Click to Configure

FAQs

1. Are Fristam FM Multistage Centrifugal Pumps easy to maintain?

Yes, Fristam FM Multistage Centrifugal Pumps are easy to maintain due to their Specifically designed for generating high delivery heads and operating under extreme pressure conditions, durable constructing material, and eliminating the need for an external mechanical seal.

2. Do Fristam FM Multistage Centrifugal Pumps comply with industry hygiene standards?

Yes, Fristam FM Multistage centrifugal pumps comply with industry hygiene standards as Fristam is certified according to ISO 9001:2008, this means ensuring the highest level of quality in every respect along with being affiliated with 3-A and EHEDG (European Hygienic Engineering and Design Group).

3. Which industries commonly use multistage centrifugal pumps?

Food, Beverages, Chemical and Bio-pharmaceutical industries use multistage centrifugal pumps.

4. How do multistage centrifugal pumps differ from single-stage centrifugal pumps?

Multistage centrifugal pumps are designed to generate high-delivery heads and operating under extreme pressure conditions along with low-flow rates whereas single-stage centrifugal pumps are designed to operate for high-flow rates with low to medium-pressure applications with compact and easy construction design.
